hamwiCAD3D modelling · Structures + Pipework

Steel and pipework modelling for designers and fabricators.

3D CAD without the bloat. Model platforms, walkways, stairs and pipework in 3D, then go straight to Item Refs, cut lists and plate cutting files. Easy to learn and close to intuitive, it was developed by engineers who detail this kind of steel every day.

Download free trial What it does
3D steel & pipework modelling
Stairs & floors to BS EN ISO 14122
Item Refs, cut lists, bolts
Plate cutting DXFs
Current version
1.13 · October 2026
Runs on
Windows 10 / 11 and Linux
Free trial
90 days, complete program, no key
Licence
£345 + VAT · one user, no subscription

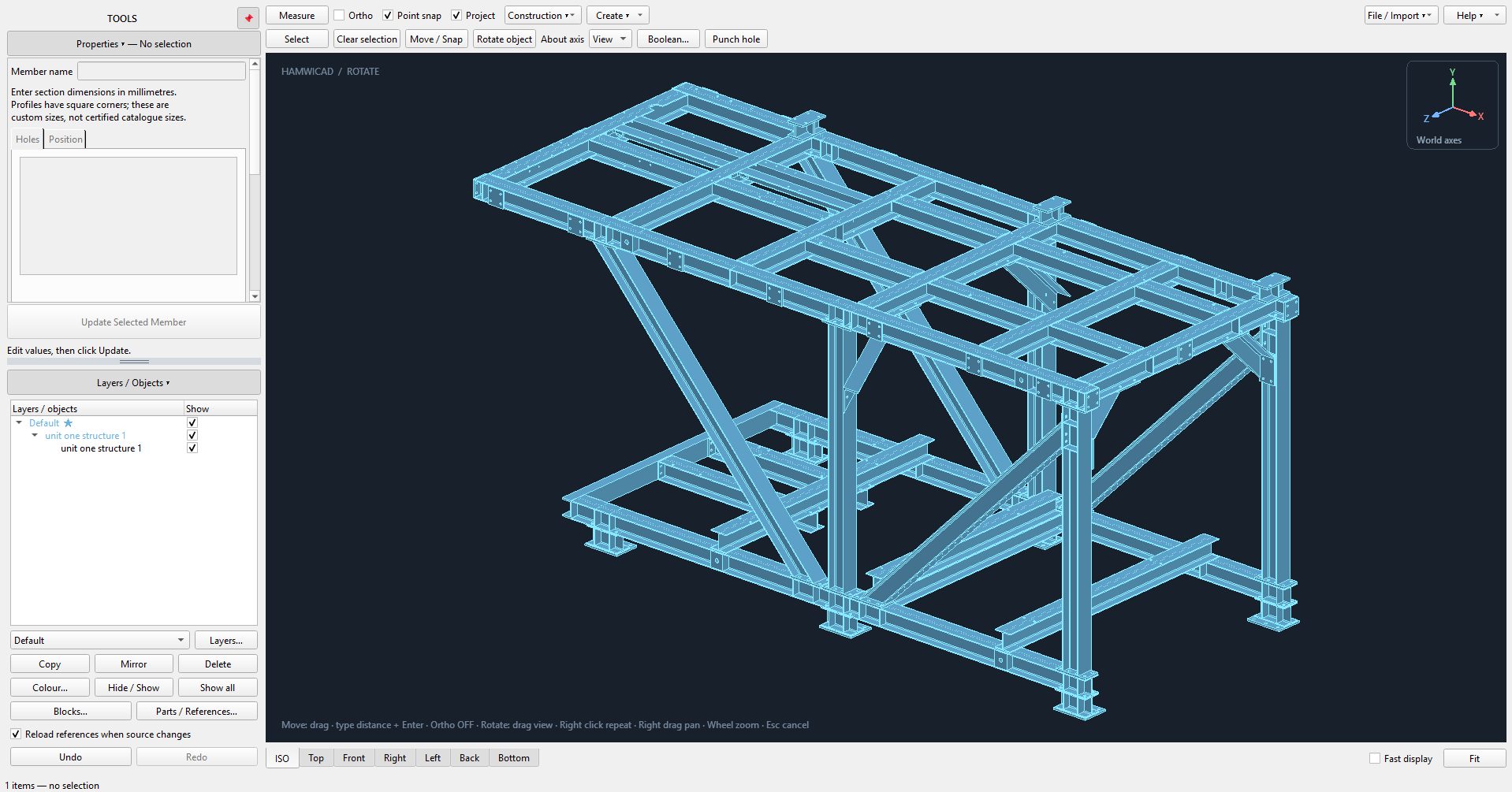

HamwiCAD on Windows showing a bolted steel support frame in the 3D view, with the tools panel and layers list on the left.
HamwiCAD in use — steel support frame in the 3D view

What it does

Model it once. Item Refs, cut lists and cutting files come from the model.

Only the tools steelwork and pipework need, without the menus and options of a general-purpose CAD package. Everything comes from the 3D model, so the cut list, bolts and cutting files agree with what you drew.

Download the Menu Guide (PDF, 7 pages) — every menu command explained.

01

Model

UK and international steel section tables, plates and flat bar, pipes, bends, flanges and handrails.

  • End plates, fins, copes, notches and skew cuts
  • Holes, punching and Boolean cuts
  • Layers, blocks and STEP import / export
02

Design aids

Tools that lay out the repetitive parts of access steelwork for you.

  • Stairs from the top step, rise and going to BS EN ISO 14122-3
  • Durbar and grating floors laid onto the beams, with span and panel-weight checks
  • Hole edge and spacing checks
03

Fabricate

Output the workshop needs, straight from the model.

  • Item Refs and cut lists with net weights
  • Bolts, nuts and washers counted from lined-up holes
  • 1:1 plate cutting DXFs, PDF and CSV

Download

Download HamwiCAD 1.13.

One download for everyone. Start with the free trial; if you buy a licence, enter the key in the same program and carry on — there’s nothing to reinstall. We ask for your name and email before the download starts.

Buying a licence

£345 + VAT (£414 including UK VAT at 20%) for a perpetual licence for one named user, with 12 months of updates and email support. Use the same download — there is no separate paid version.

  • Enter your key in File / Import › Licence…
  • The 90-day limit goes and you can use HamwiCAD for paid work
  • Already running the trial? Just enter the key; your projects carry on
Buy a licence · hamwicad@hamwic.com

Everything is in the trial. Steel and pipework modelling, stairs, durbar and grating floors, handrails, Item Refs, cut lists, bolt lists, plate cutting DXFs and STEP import / export are all in the download you try. A licence key unlocks nothing extra; it removes the time limit and allows commercial use.

Installing

A few minutes on either system.

Once it’s running, the Menu Guide (PDF) explains every command.

Windows

  1. Double-click the downloaded HamwiCAD-Trial-Setup-v1.13.exe and follow the steps. It installs for your own account; no administrator needed.
  2. Start HamwiCAD from the Start Menu and accept the licence agreement.
  3. Licensed copies: enter your key in File / Import › Licence…

“Windows protected your PC”HamwiCAD is not yet code-signed, so Windows does not recognise it. Choose More info, then Run anyway.

Using the .zip instead?Right-click it, choose Extract All…, then double-click install.bat in the extracted folder.

Linux

  1. Double-click the downloaded .deb file and choose Install. It asks for your password, because it installs for all users of the computer.
  2. Start HamwiCAD from the applications menu and accept the licence agreement.
  3. Licensed copies: enter your key in File / Import › Licence…

Using the .tar.gz instead?Unpack it and run the installer:

tar -xzf HamwiCAD-Trial-v1.13-linux-x86_64.tar.gz
bash HamwiCAD/install.sh

Linux Mint 22, Ubuntu 24.04 or newerHamwiCAD needs glibc 2.39 or later; the installer warns you on an older system.

If nothing appears, or the window stays black

Some graphics drivers can’t draw HamwiCAD’s 3D view. HamwiCAD normally notices and switches by itself; if it doesn’t:

  • Windows: open the Start Menu and choose HamwiCAD (safe display).
  • Linux: choose HamwiCAD (safe display) in the menu, then Help › Software 3D display.

Safe display draws the 3D view without the graphics card. It is slower with very large models but otherwise the same.

RequirementWindowsLinux
SystemWindows 10 or 11, 64-bitLinux Mint 22, Ubuntu 24.04 or newer, x86-64
GraphicsAny recent graphics card or chip with OpenGL; without one, use safe display (above)
UpgradingInstall over an earlier version; projects, settings and licence key are kept

Checksums

Check your download.

To make sure a download is complete and unaltered, compare its SHA-256: in PowerShell Get-FileHash <file>, on Linux sha256sum <file>. The trial and the licensed HamwiCAD are the same files.

FileSHA-256
HamwiCAD-Trial-Setup-v1.13.exe1cac199dbe277297b96bf7e4362bb20bd844ef130f1003d7c6f7b4b5521d64f3
HamwiCAD-Trial-v1.13-windows-amd64.zipabba9435afba8f1ba1ee685b9e25c7e869bee31d59697c2fd73551756c6ff6d3
HamwiCAD-Trial-v1.13-linux-x86_64.deb41afd973bb88ebfbaecfceb2279c755e35e3f197b7042af15710d7c997a8859d
HamwiCAD-Trial-v1.13-linux-x86_64.tar.gz7cc6d6270b945cda581068ed4a2fae1c338ac4ab32076bf9c0a52434a16d20dc

Licence & support

Licences, support and the small print.

HamwiCAD's floor, stair, hole and notch checks help you work to BS EN ISO 14122 and the relevant design standards. They are an aid, not a sign-off: the design must still be checked and approved by a competent person.

You accept the HamwiCAD licence agreement when the program first starts, and can read it again under Help › Licence Agreement. Please read it before you buy. HamwiCAD uses open-source libraries, including Qt and Open CASCADE under the LGPL; their notices, licence texts and a written offer of their source code are under Help › About.

Buy a licence · £345 + VAT
hamwicad@hamwic.com
